Overview

An ontology defines dataset rows as entities such as customers, products, and orders and connects relationships between them. Use an ontology when you need to query multiple datasets with the concepts and names used by the business.

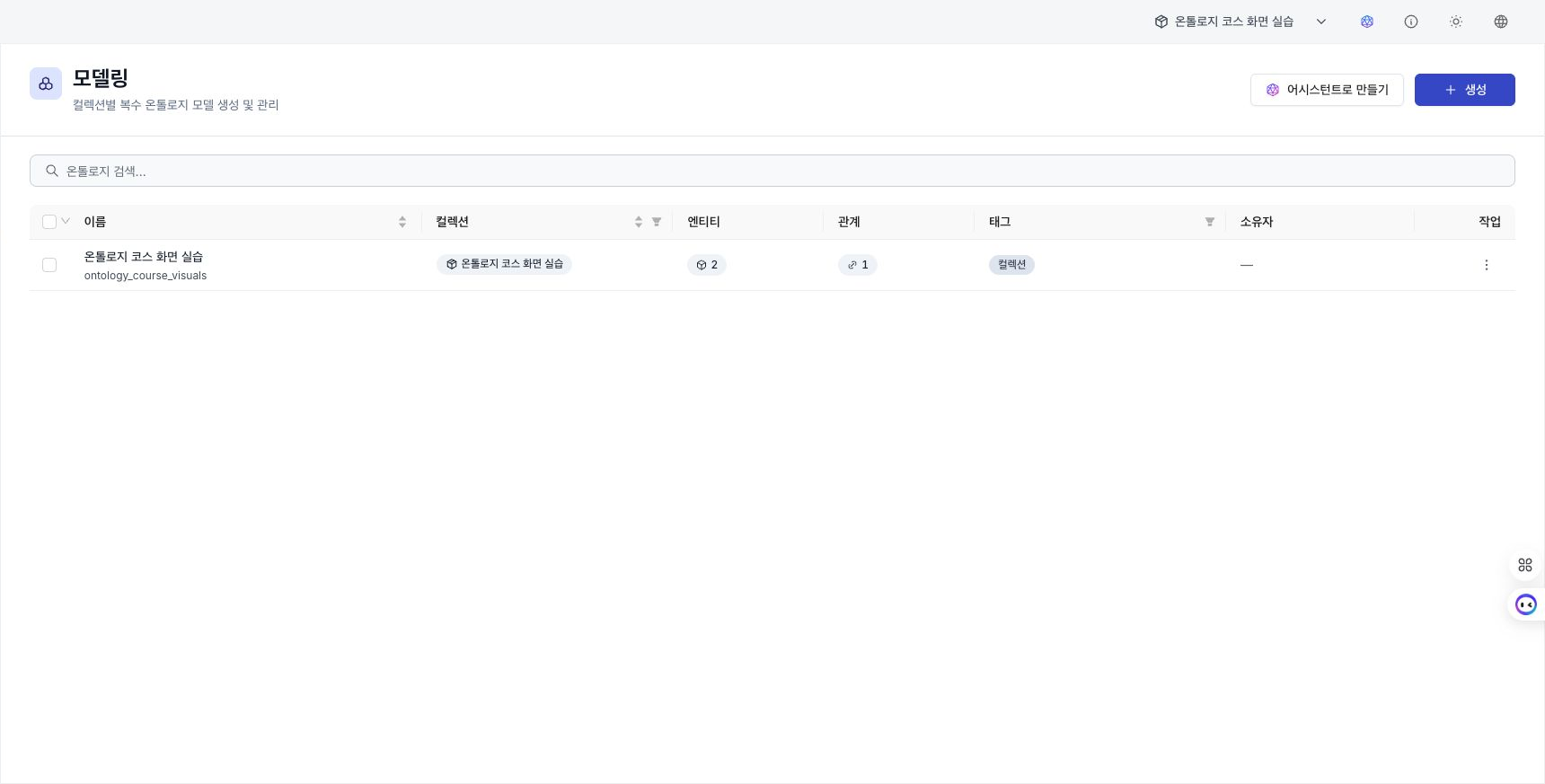

Modeling list with entity and relationship counts by collection

Core concepts​

ConceptDescriptionExample
EntityA business object managed as a distinct type.Customer, product, order
RelationshipDefines how two entities are connected.Customer places order, order contains product
PropertyA data field on an entity or relationship.Customer ID, order date, quantity
Identifier keyA column that distinguishes each data row.customer_id, order_id
Display columnA column shown as the representative name in lists and graphs.Customer name, product name
Storage modeDetermines whether relationship data is stored in a link table, foreign-key columns, or through an intermediate entity.Customer foreign key on an order
CardinalityLimits how many instances on either side can be connected.Many orders connect to one customer
Instance dataActual rows loaded according to an entity or relationship schema.Customer row, order relationship row

A collection can contain multiple ontology models. In the left panel under Modeling, find models by collection and edit the current model's entities, groups, and relationships. Entities from other models are available read only for structural comparison.

When several ontology rows are selected, Delete applies only to models you can delete. Within a model, select several entities to assign their groups together. To remove all entities and relationships from a model, use Reset ontology data.

Create an ontology​

  1. Select the collection to work in from Ontology Builder.
  2. Create an entity and set its name, properties, identifier key, and display column.
  3. Create relationships between entities and set their direction, storage mode, cardinality, and properties.
  4. Upload a file on the Data tab or load data through a pipeline.
  5. Review loaded rows on the Data tab.
  6. In Graph Explorer, select an entity or relationship to query actual connections.
Review the schema before creation

After creating an entity or relationship, you cannot directly change an existing property's name, type, or nullability, or change the identifier key. Compare the source dataset columns with the identifier key before creation.

Review data​

Select Data in an entity or relationship row in the Modeling list to review rows from its mapped dataset. The display column appears as the representative name and the identifier key distinguishes each row.

In Graph Explorer, select an entity or relationship type to query connected data. Select a result node or edge to review its properties.

If source changes do not appear on the ontology screen, ask an administrator to review synchronization status. An administrator can run synchronization under Ontology mirror maintenance in Settings.
